Vibratory Machine

Vibratory Machines are mass finishing machines, used for deburring, polishing, descaling, and surface improvement on metal and plastic components.
Availability:
Inquire Add to Basket

Model ZDG30 ZDG80 ZDG100 ZDG200 ZDG300 ZDG400 ZDG600 ZDG900
Total volume(L) 30 80 100 200 300 400 600 900
Max overall dimension 500 800 1020 1200 1350 1450 1850 1390
Motor installation tube 70/110 120/210 455 515 620 620 895 610
Process bowl width 140/160 235/280 225 280 285 330 400 560
Tunnel depth 220 258 315 360 385 435 460 510
Machine height(A) 580 750 850 920 920 1100 1300 1350
Motor（KW) 0.37 0.75/1.1 1.5 2.2 3.7 5.0 5.5 5.5/7.5

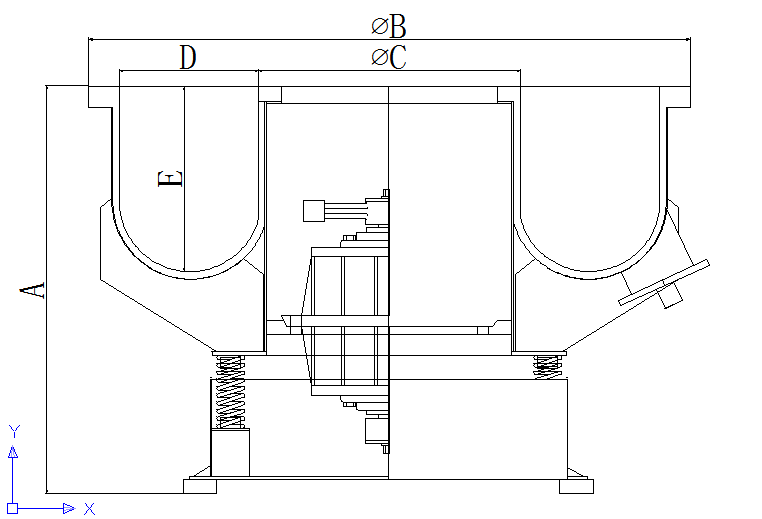

机器平面图
