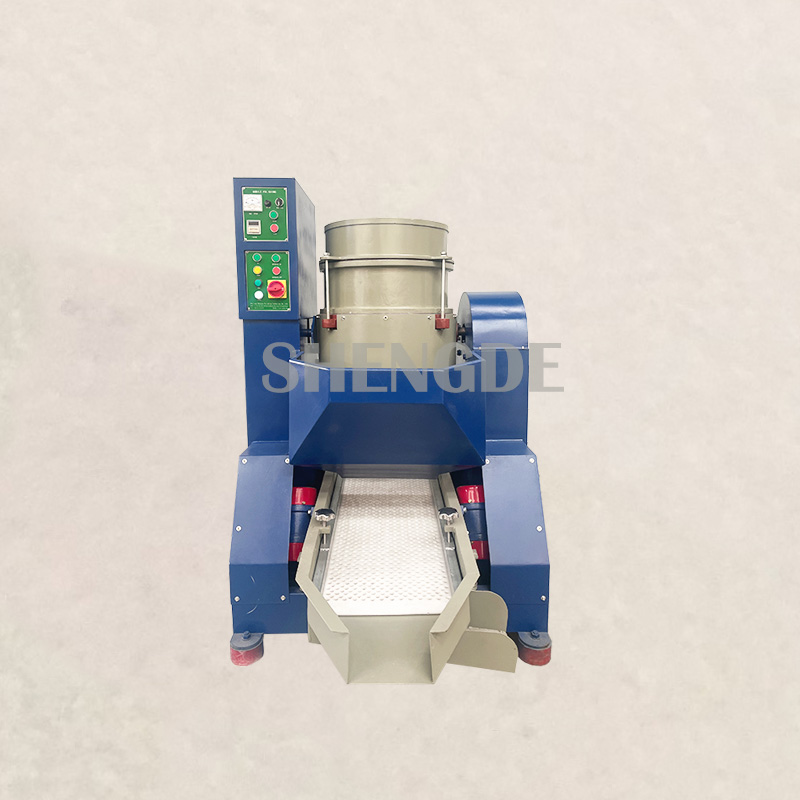

50L/120
The rotary barrel machines are designed for optimum disc and chamber life with greater thickness of polyurethanein the high wear areas. A special sealing arrangement ensures a longer life of rotating disc and does not require frequent gap adjustment.
Discharge of the work mass can be done manually or by an automatic tilting arrangement.
The advantages of Rotary barrel machine over Centrifugal Finishing are the greater ease of loading and unloading and the possibility of In-process inspection of parts.
Process times are significantly lower than Vibratory Finishing Machines but somewhat more than Centrifugal Finishing Machines.
| Model | Capacity (L) | Specification | Motor | Vib-Screen | Unloading | Speed(r/min) | Size(φmm) |
| LDS50 | 50 | 1400*1140*1200 | 1.5KW | 2*0.12 | 0.75KW | 0-180 | 460 |
| LDS120 | 120 | 1800*1300*1500 | 4.0KW | 2*0.12 | 0.75KW | 0-170 | 640 |
The rotary barrel machines are designed for optimum disc and chamber life with greater thickness of polyurethanein the high wear areas. A special sealing arrangement ensures a longer life of rotating disc and does not require frequent gap adjustment.
Discharge of the work mass can be done manually or by an automatic tilting arrangement.
The advantages of Rotary barrel machine over Centrifugal Finishing are the greater ease of loading and unloading and the possibility of In-process inspection of parts.
Process times are significantly lower than Vibratory Finishing Machines but somewhat more than Centrifugal Finishing Machines.
| Model | Capacity (L) | Specification | Motor | Vib-Screen | Unloading | Speed(r/min) | Size(φmm) |
| LDS50 | 50 | 1400*1140*1200 | 1.5KW | 2*0.12 | 0.75KW | 0-180 | 460 |
| LDS120 | 120 | 1800*1300*1500 | 4.0KW | 2*0.12 | 0.75KW | 0-170 | 640 |
